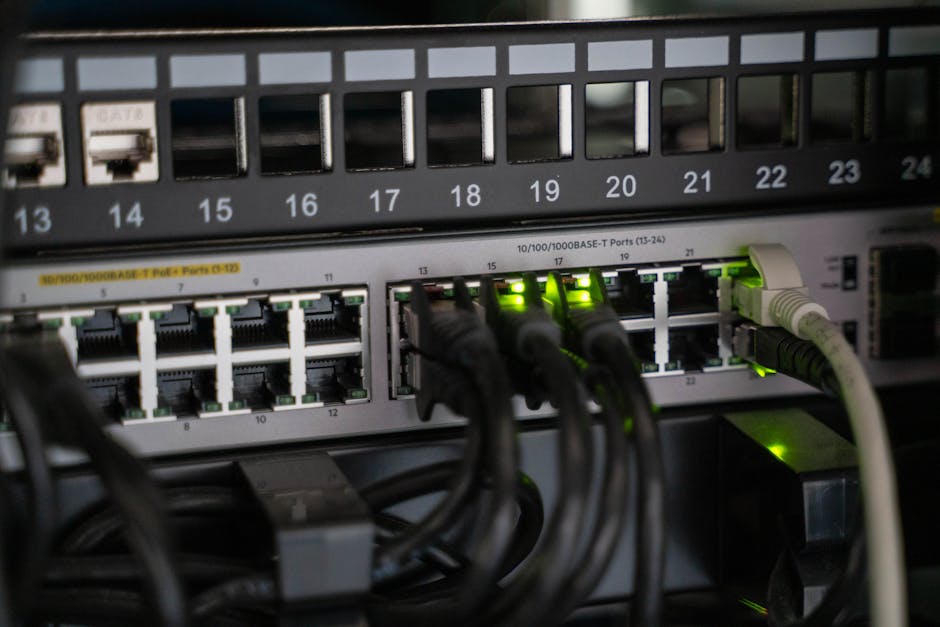

Image by: Vladimir Srajber
Understanding secure SD-WAN and FortiGate implementation
Did you know 95% of enterprises report improved application performance after implementing SD-WAN? Fortinet’s Secure SD-WAN solution combines advanced routing, security, and WAN optimization in a single FortiGate Next-Generation Firewall, making it a top choice for network engineers. This tutorial will guide you through configuring a robust SD-WAN architecture that prioritizes business-critical applications while maintaining enterprise-grade security.
Why FortiGate for SD-WAN?
FortiGate firewalls offer:
- Integrated security stack (IPS, antivirus, web filtering)
- Application-aware routing capabilities
- Real-time path selection based on SLA metrics
“FortiGate’s single-pane-of-glass management reduces complexity by 40% compared to traditional SD-WAN solutions” – Gartner 2023 WAN Edge Magic Quadrant
Configuring SD-WAN members and interfaces
Start by defining your WAN interfaces in FortiOS 7.4:
- Navigate to Network > Interfaces
- Create SD-WAN zone (e.g., WAN_Zone)
- Add member interfaces (WAN1, WAN2, LTE)
| Interface | Type | Bandwidth | Cost |
|---|---|---|---|
| WAN1 | Fiber | 1 Gbps | 10 |
| WAN2 | Cable | 500 Mbps | 20 |
| LTE | 4G | 50 Mbps | 50 |
Pro tip: Use our FortiGate template guide to automate interface configurations.
Setting up performance SLAs and routing rules
Create SLA probes to monitor link quality:
- Go to Network > SD-WAN > Performance SLA
- Configure probes for critical applications:
- Microsoft 365: probe to outlook.office365.com
- VoIP: UDP probe to SIP server
Sample routing table logic
config system sdwan
set status enable
config service
edit 1
set name "Priority_VoIP"
set mode priority
set dst "voice_servers"
set priority-members 1 2
Implementing security profiles for SD-WAN traffic
Apply security policies without compromising performance:
- Enable SSL inspection for SaaS applications
- Create application control policies for social media
- Implement IPS signatures for WAN-facing interfaces
Critical integration: Pair SD-WAN rules with FortiGuard services for real-time threat prevention.
Monitoring and troubleshooting SD-WAN health
Use built-in FortiOS tools:
- SD-WAN Monitor dashboard
- Link quality historical reports
- Real-time traffic logs
Common issues and fixes
| Issue | Possible cause | Solution |
|---|---|---|
| Packet loss >5% | Congested link | Adjust SLA thresholds |
| Route flapping | Mismatched timers | Standardize hello intervals |
Frequently asked questions
How often should SLA probes be configured?
For business-critical apps, set 5-second intervals. For general traffic, 30-second intervals balance accuracy and overhead.
Can I mix internet and MPLS links in SD-WAN?
Yes. FortiGate treats all WAN types equally, applying the same SLA and security policies across hybrid connections.
Conclusion
Implementing Secure SD-WAN on FortiGate requires careful planning of interfaces, SLAs, and security policies. By following this guide, you’ll create a network that automatically routes Zoom around packet loss and protects SAP traffic with deep inspection. For advanced configurations, explore our enterprise networking resources or consult Fortinet’s official documentation.
